Embedded 2D Barcode And QR Code Reader: RT870 & RT870W
An embedded barcode scanner suitable for lockers, vending machines, ticking machines, access control terminals, etc.
RT870 is the standard version, and RT870W is the IP67 water-proof & dust-proof version.
Features
- Automatically detects and reads bar codes.
- High-speed motion tolerance. Sensitive detection and fast reading from either phone screen or paper.
- Fixed mount design for embedded use.
- Windows, Linux, Android, Arduino, Raspberry PI
- Robust. RT870W version is IP-67 water-proof & dust-proof
Connection
- USB-HID
- USB-CDC, Virtual Com
- DP9 RS232
Certificate
- CE, FCC, RoHS, REACH, IEC 62368-1, IEC60825, IP67 (for RT870W)
Video Introduction
Read Bar Code In Dark Environment
Introduction
RT870 is an embedded design 2d barcode reader for all kinds of kiosk, self-service, and ticketing terminals; it is outstanding for its high-speed motion tolerance (>2m/s) and capacity to decode almost all types of bar codes, including QR code, Aztec, MaxiCode, Data Matrix, PDF417, EAN code, etc.
It automatically detects and reads bar codes with USB-HID, USB-Virtual Com, and RS232 interfaces.

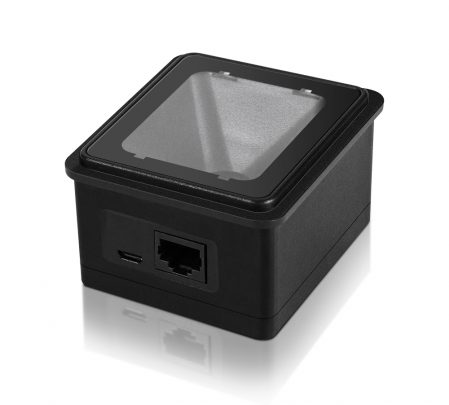

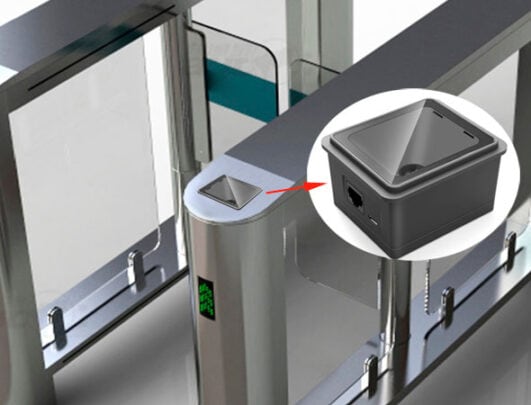

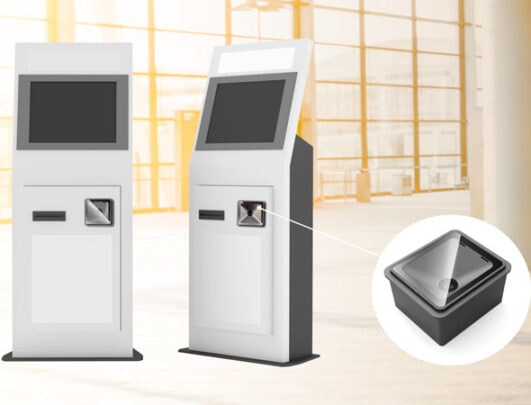

This RT870 performs excellent bar code reading from cell phone screens and paper. Designed for embedded use, it is suitable for all kinds of Kiosk, ATMs, ticket terminals, turnstiles, and medical devices, such as Ticket vending machines, Access control gates & turnstiles, Transportation (ticketing of buses, metro…), Loyalty cards; Car park ticket machines.

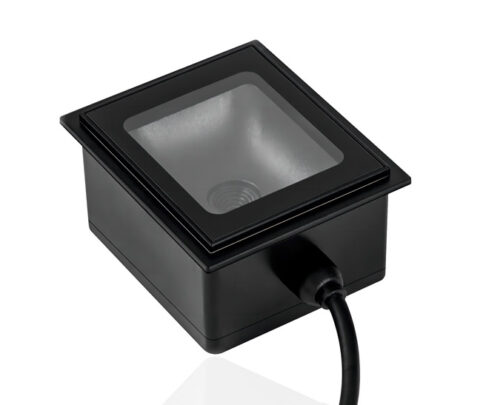

RT870W: IP67 Waterproof Version

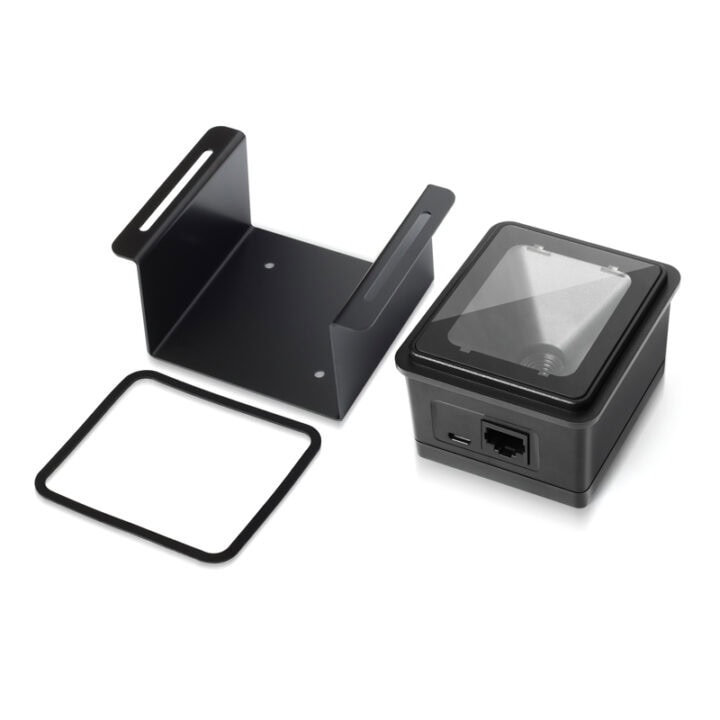

Embedding Reference:
Integration

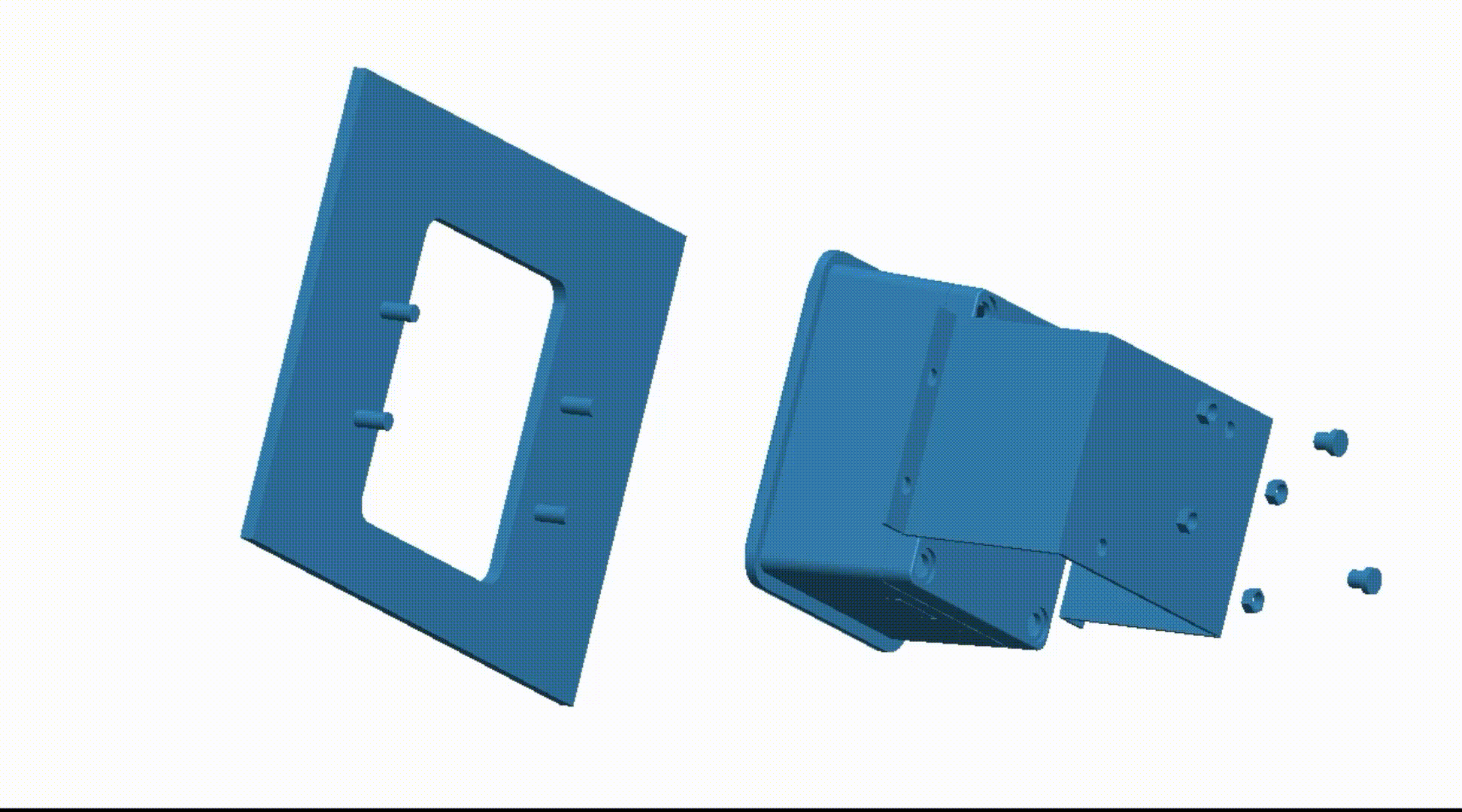

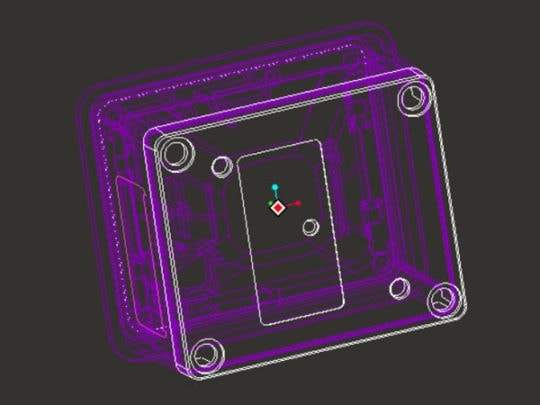

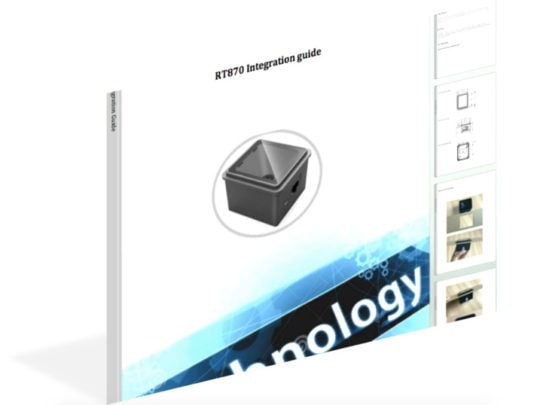

We provide 3D-Drawing, Integration guide and User manual which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.
We provide rich programming codes for you to do many kinds of settings / user-define.
Please ask our sales people for detailed documents.
Specification
Physical Characteristics | |
Dimensions: | 77mm* 66mm* 45mm |
Weight: | 75g |
Voltage: | 5 VDC±10% |
Current: | Typical:200mA MAX:450mA |
Performance Characteristics | |
Image sensor: | CMOS 640*480 |
Field of View: | 72° (H) x 64° (V) |
Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
Print Contrast: | 20% minimum reflective difference |
Symbology Decode Capability | |
1-D: | Code 128, EAN-13, EAN-8, Code39, Code93, Matrix 2 of 5, Codabar, Interleaved 2 of 5, GSI dataBar, etc. |
2-D: | QR Code, Aztec, PDF417, Micro PDF417, Data Matrix, etc |
Minimum Resolution | 5 mil Code39 |
Interfaces Supported: | USB, 232 |
20mil QR Code 13mil UPCA 10mil Data Matrix 6.88mil PDF417 | 0mm-100mm 5mm-110mm 0mm-50mm 0mm-50mm |
User Environment | |
Operating Temperature: | -40°C to 70°C |
Storage Temperature: | -50°C to 85°C |
Humidity: | 0% to 95%, non-condensing |
Drop/Shock Specifications: | Withstands 1.2m drops |
Ambient Light Immunity: | 0 to 100,000 lux |
