Fast-Speed 2D and QR Scanner: RT830D
Fast-speed 2d and QR scanner for ticket validator, turnstile, lockers, etc.
Features
- Excellent reading speed
- Fixed mount design for embedded use
- Large field of view – user friendly
- Can read bar codes from screen and paper
- Detect and read bar code automatically
- Support most 1D and 2D bar codes
- Workable in a dark/ normal/ under sunlight environment
Connection
Certificate
CE FCC ROHS IEC62471

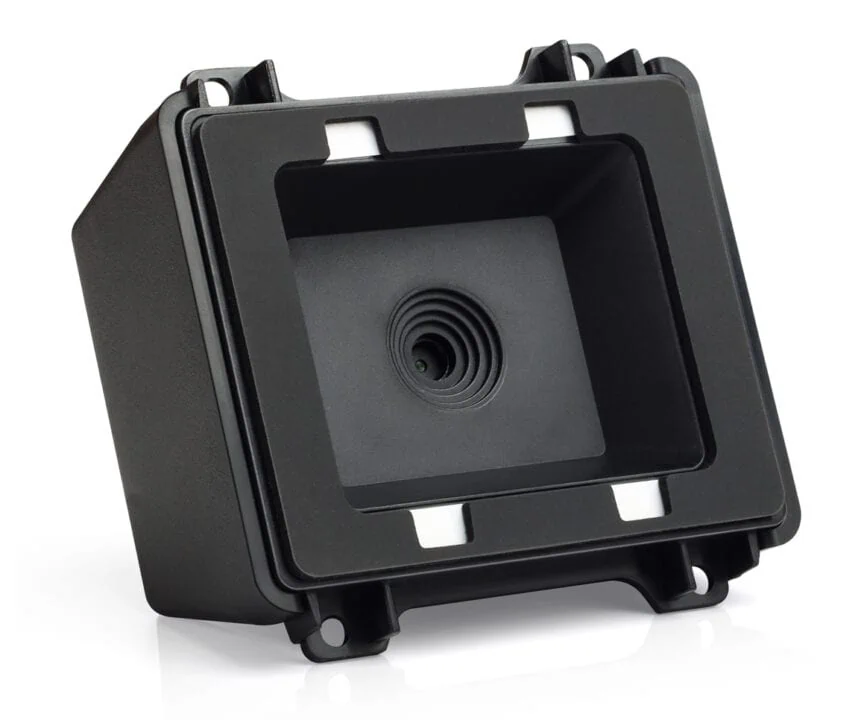

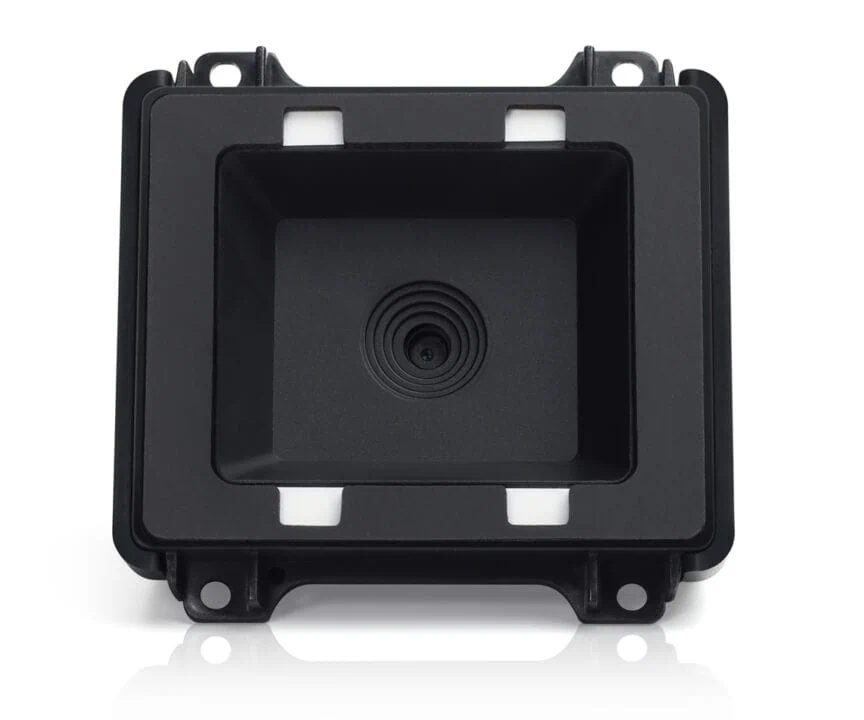

Fast-Speed 2D Scanner: RT830D
RT830D is design for all kinds of embedded use: bus or metro ticket validator, turnstile, lockers, queuing equipment, self-service inquiry terminals, and medical devices.Outstanding for its high speed reading performance and make better users-experience for quick scan and pass.
It has capacity to decode almost all types of 1D/2D bar codes, including Aztec, Maxi Code, QR, Data Matrix, PDF417, EAN code, etc. It also has been optimized for reading bar codes from mobile phone.
Thanks to its special design, you can embed the scanner under glass, this can ensure dust-proof and rain-proof for both outdoor and indoor use.
Support sense mode which detects and reads bar code automatically.
Video Introduction
Application in transportation / Bus ticketing system
Its high-speed and accurate reading performance in both usual and dark environments makes it very suitable for transportation ticketing: metro ticket validator, bus ticket validator, etc.
The passenger shows their payment QR or 1D code on their cellphone screen or card, and the bar code reader detects and reads the QR code or 1D code automatically.
Features
- Excellent reading speed
- Fixed mount design for embedded use
- Large field of view – user friendly
- Can read bar codes from screen and paper
- Detect and read bar code automatically
- Support most 1D and 2D bar codes
- Workable in a dark/ normal/ under sunlight environment
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.
We provide rich programming codes for you to do many kinds of settings / user-define.
Please ask our sales people for detailed documents.
Integration Accessories

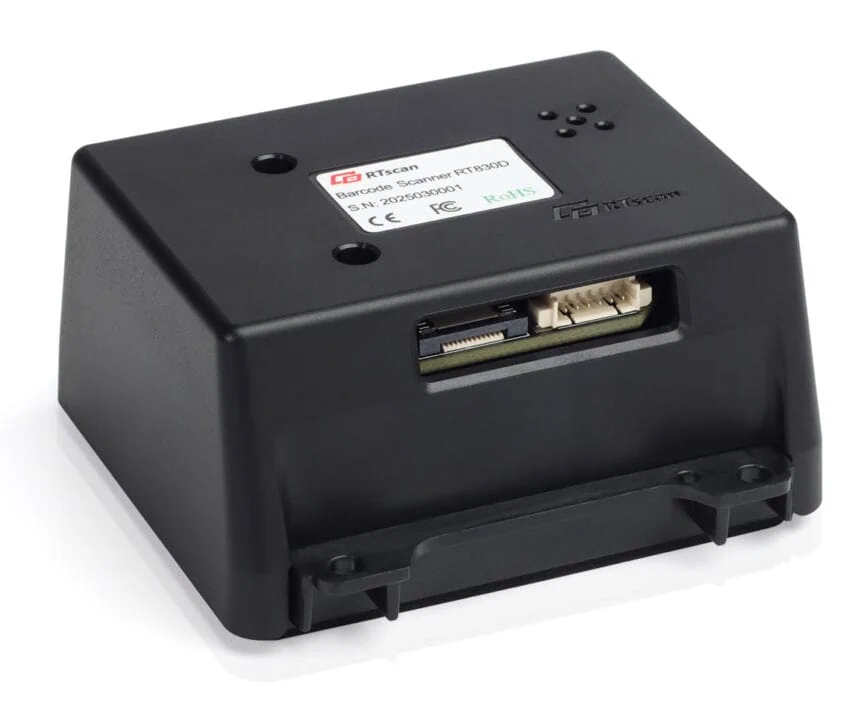

To facilitate our customer integration, we provide Screws, Flat cables, Connectors, USB/RS232 EVK (We also call it development kit board) and their schematic. But they are all optional, you can tell our sales people do you need them or not when you place order.
Integration

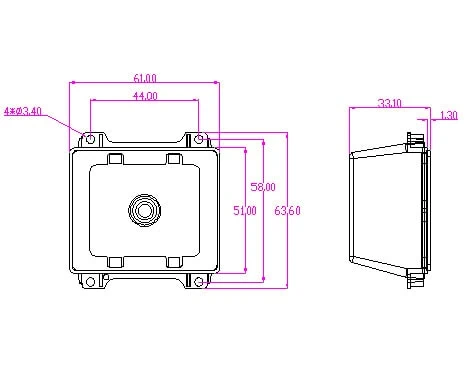

We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
Specification
| Performance | ||
| Image Sensor | 640 pixels (H)x 480 pixels (V) | |
| Illumination | Illumination: 4000K LED | |
| Aiming | ||
| Symbologies | 2D | PDF417, MicroPDF417, Data Matrix, Maxi code, QR Code, Micro QR, Aztec etc. |
| 1D | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, etc | |
| Minimum Resolution | ≥ 3.9 mil | |
| Typical Depth of Field | Code39 | 40-100mm (5mil) |
| Code39 | 70-200mm (13mil) | |
| QR Code | 60-100mm (15mil) | |
| QR Code | 35-180mm(30*30mm size) | |
| Performance may be impacted by bar code quality and environmental conditions | ||
| Scan Mode | Sense mode, Command trigger | |
| Scan Angle | Roll: 360°, Pitch: ±65°, Skew:±65° | |
| FOV | 60°(H) 46°(V) | |
| Motion Tolerances | Up to 200cm/s | |
| Print Contrast: | 20% minimum reflective difference | |
| Mechanical/Electric | ||
| Interface | USB, RS232, TTL232 | |
| Dimensions | 61mm x 64mm x 29mm | |
| Notification | Beep, LED blinking | |
| Voltage | 5±5% VDC | |
| Current | Operating: 385mA. Standby: 220mA. | |
| Environmental | ||
| Operating Temperature | -20℃ to 60℃ | |
| Storage Temperature | -30℃ to 70℃ | |
| Humidity | 0% to 95% relative humidity,non-condensing | |
| Ambient Light | 0-100,000 Lux. | |
| Immunity | ||
