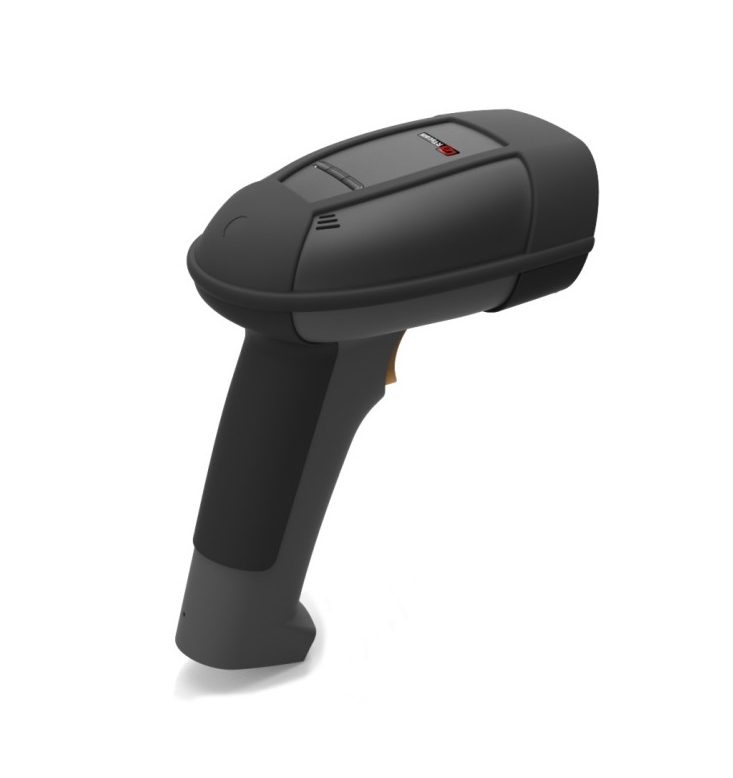

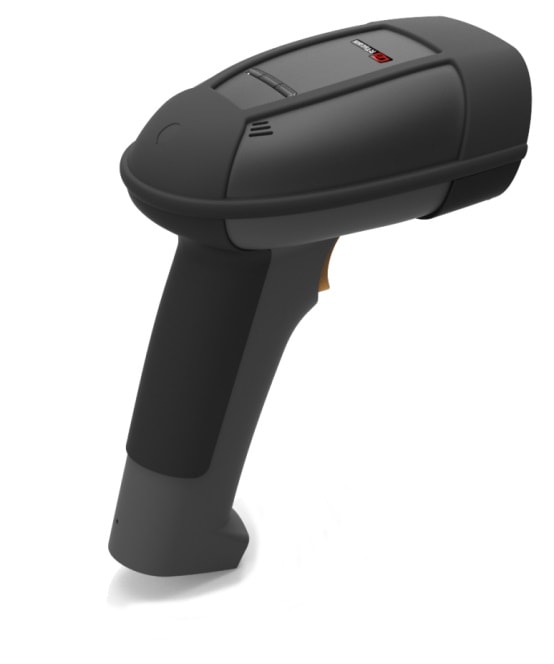

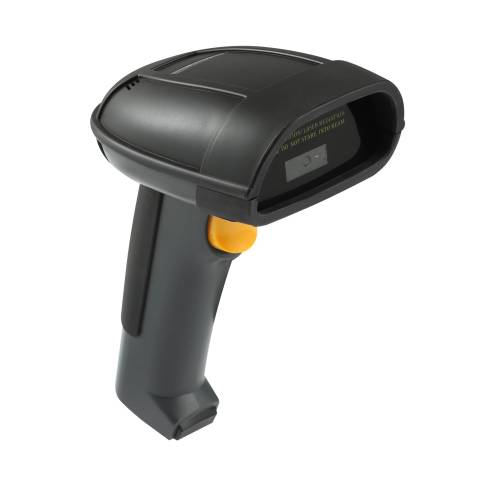

Handheld 2D Barcode Reader: RT302
—A Robust barcode scanner suitable for warehouse, logistics, postal, ticketing, manufacturing, etc.
Features
✔️ Robust design, Plug-and-Play
✔️ Buzzer & Vibrating & LED Indicator
✔️ Read Poor Quality Bar Codes
✔️Excellent Bar Code Reading Performance From Paper and Screen
✔️ Application: Warehouse, Logistics, Postal, Ticketing, Manufacturing…
Connection
⌨️ USB ✹
⌨️ RS232 ✹
(✹Optional)
Certificate
CE、FCC、RoHS
RT302 Dropping Test and Performance
The RT302 is a handheld 2D barcode scanner, It’s outstanding at its robust design, excellent bar code reading performance to read 1d and 2D QR codes, even damaged code, glare code, curved code, low contrast code, whatever read from paper or from phone screen.
It is suitable for all kinds of application: warehouse, logistics, postal, ticketing, manufacturin,etc.
Excellent Bar Code Reading Performance
Great performance to read most types of common 1d /2d and QR bar codes,
whatever read from paper or from phone screen.
And it’s also outstanding at reading
on-screen bar codes even when the screen is covered by protective film or with lower brightness.

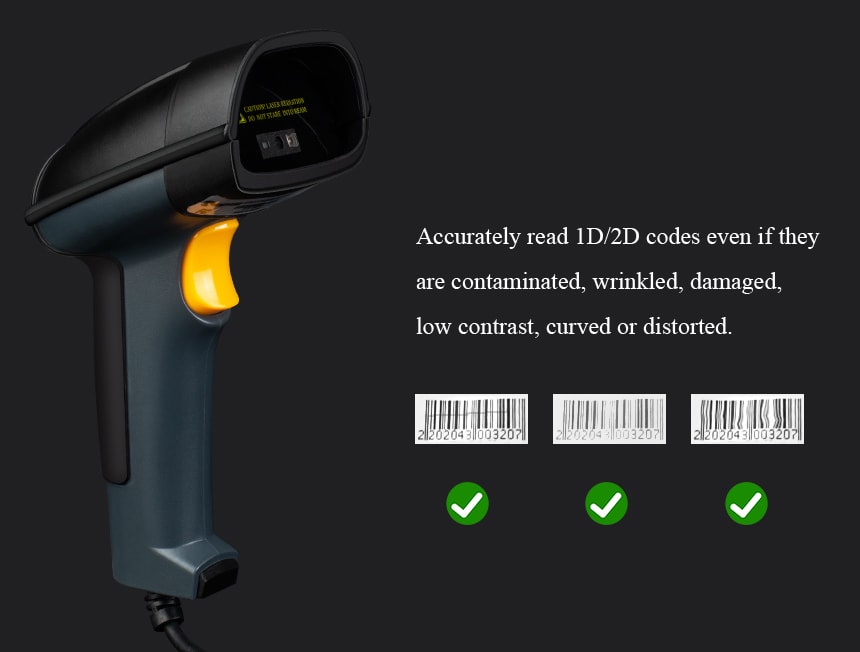

Read Poor Quality Bar Codes
Applied with newest technology, this barcode scanner can easily read even poor quality bar codes: damaged bar codes, low contrast bar codes, torn bar codes, warped or wrinkled bar codes.

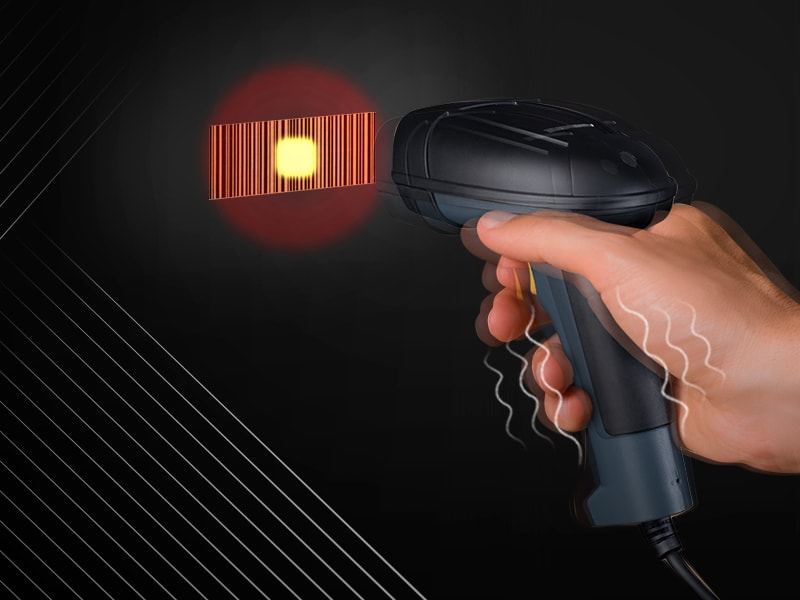

Vibrating alert for noisy environment
In addition to the indicator light and buzzer, vibrating alert is
also added to offer the staff a haptic feedback on code
scanning. With this, no scan can be missed even in the
nosiest environment.

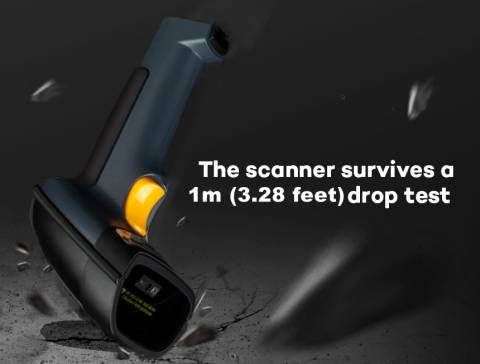

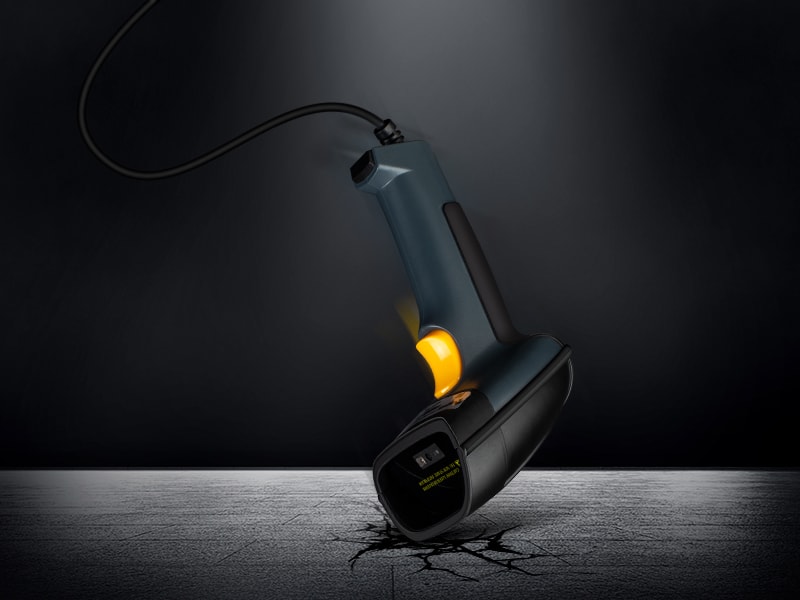

Drop Tolerance
Robust design, designed to withstand 20 drops at 1.0 m to concrete
Specification
| Performance | ||
| Image Sensor | 640 * 480 CMOS | |

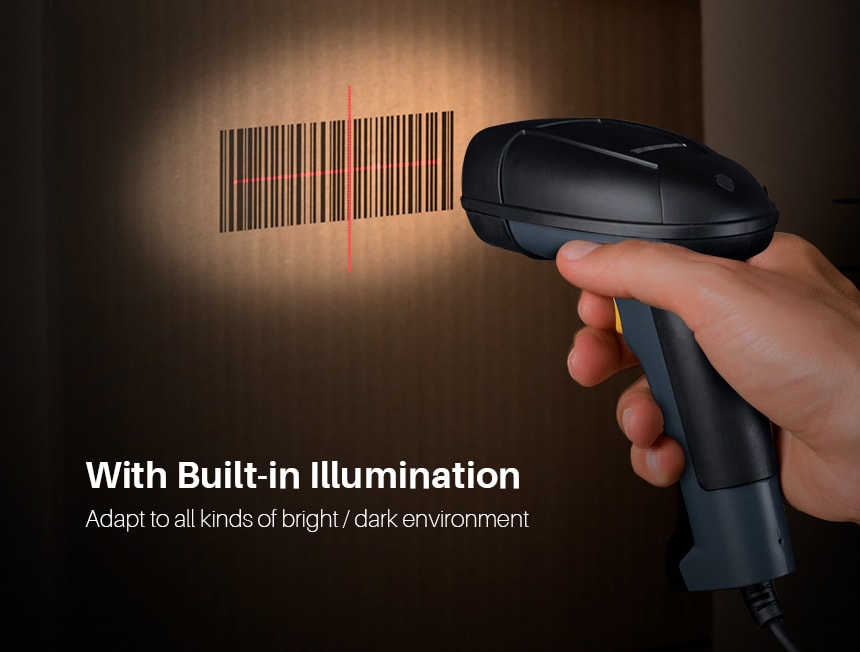

| Illumination | White LED | |
| Aiming | Red LED 625nm | |
| Symbologies | 2D | PDF417 , QR Code, Data Matrix, Micro QR |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Plessey, MSI Plessey, Code 11,Code 93, etc. | |
| Resolution | ≥3mil (differ from different type bar codes) | |
| Typical Depth of Field | EAN-13 | 60-350mm (13mil) |
| Code 39 | 40-150mm (5mil) | |
| PDF417 | 50-125mm (6.7mil) | |
| Data Matrix | 45-120mm (10mil) | |
| QR Code | 30-170mm (15mil) | |
| Scan Mode | Sense mode, trigger mode | |
| Scan Angle | Roll: 360°, Pitch: ±60°, Skew:±60° | |
| Field of View | Horizontal 42°, Vertical 31.6° | |
| Min. Symbol Contrast | 25% | |
| Mechanical/Electric | ||
| Interface | USB-HID, USB-VCOM or RS232 | |
| Dimensions | 180mm x 80mm x 90mm | |
| Weight | 247g(include USB cable), 170g(not include cable) | |
| Notification | Beep, LED indicator | |
| Operating Voltage | 5.0V DC + 5% | |
| Current@5.0V DC | Operating: 150mA (typical), 300mA (max.); Idle: 40mA | |
| Indicator | LED, vibrator, beeper | |
| Environmental | ||
| Operating | -20℃ to 55℃ | |
| Temperature | ||
| Storage Temperature | -40℃ to 70℃ | |
| Humidity | 5% to 95% (non-condensing) | |
| Accessories(optional) | ||

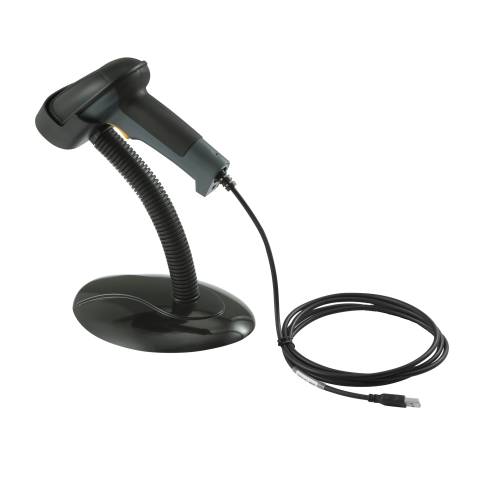

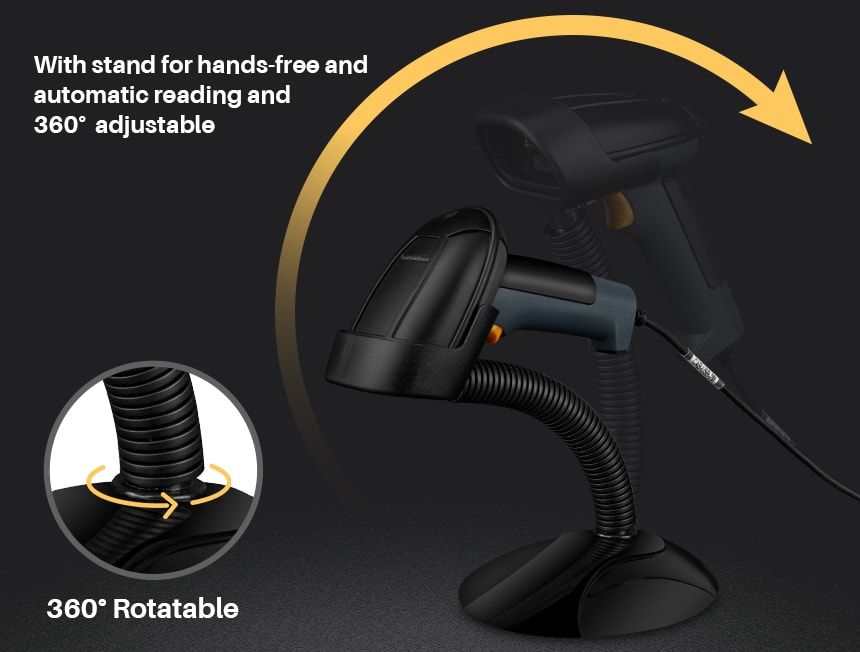

| Stand | Used for holding the scanner, work in hands-free and sensor mode. | |
