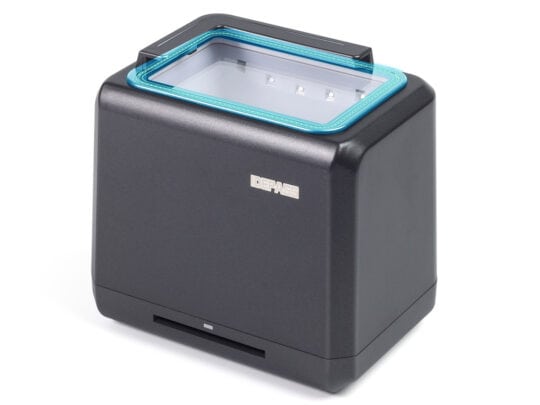

Photo ID Scanner: IDE200 - V2.0
The IDE200 captures full-color images and ultraviolet (UV) and infrared (IR) images of ID cards or driver's licenses. At the same time, it supports Optical Character Recognition (OCR) for the machine-readable zone (MRZ), which is ICAO9303 compliant, and also supports PDF417 bar code reading.
With a particular design, it's suitable for desktop/ on-counter use and kiosk-embedded use.
It is outstanding for:
- High speed: around 1 second for color+uv+ir+ocr processing.
- Driver-free: No driver is required.
- There is no need for an extra power supply; the USB is powered directly.
Certificate
CE、FCC、RoHS
Features:
- Read OCR-B/ MRZ From ID documents
Take the full-page image of ID documents and read 3 lines of MRZ (machine readable zone) in the ID card, and driver’s license.
- Color / UV / IR
Equipped with 8 Megapixel image sensor and with three types of illumination which enable UV, Color, and IR three types (optional) of image capture
- High speed
1-2 seconds for image capture+ OCR processing
- No driver is required
No driver is required
- Automatic Reading
The IDE200 support automatically detects and reads the ID documents when we put the documents on its window
- Suitable for both Desktop & Embedded use
Its design suitable for both on-counter and self-service terminals embedded use
- USB Powered directly
No need for the extra power supply
- No moving parts
Durable design and Reliable, no moving parts
- Read Big Size PDF417 From ID Card
Readable those big sizes and high-density PDF417/ QR coded from ID card/driver’s license.
Specification
Function | Usage | Specification |
Standard OCR reader 1D/2D bar code reader | • ID card • Driver license | • ICAO9303 td1, 3 line MRZ • 2D:PDF417,GM,QR,DM • 1D:Code39,Code128,Codabar,EAN-EAN-13,ITF |
Light Source | • White • UV • IR | • Color Image • Ultraviolet Image • Infrared Image |
Scan speed | • Color+ IR • Color+ IR+UV | • Around 1.1s • Around 1.8s *Would be a little different with different computers. |
Scan Mode | • Software Trigger • Auto mode | • By scan button in the software interface • Automatic card placement detection and read; |
Resolution | • 8M image sensor+ 5M Camera lens | • >600 DPI |
Power Supply | • USB Supply | • USB, no external power needed |
Communications and host | •Communication • Host • SDK | • USB 2.0 high speed • SDK is based on Windows only currently. ( For Linux, and Android: negotiable.) • Free SDK/ license included (SDK is based on Windows only currently), Supports: |
Mechanical/ Electric | • Dimensions • Weight • Notification • Window | • 13.4(W)×9.4(D)×11.4(H)/cm • 300g • Beep, LED indicator • Anti-scratch glass |
Applications
- Access control and visitor registration system
- Bank counter user information registration system
- Securities company customer management system
- Integration into self-service kiosks
- Restaurant front desk registration system
- Hotel customer information registration system and public security management
- Duty-free shop customer information registration system
- Customer identity management system for casinos, night bar, VIP club,s and other occasions
- Train and bus station passenger management
- Telecom service account application system

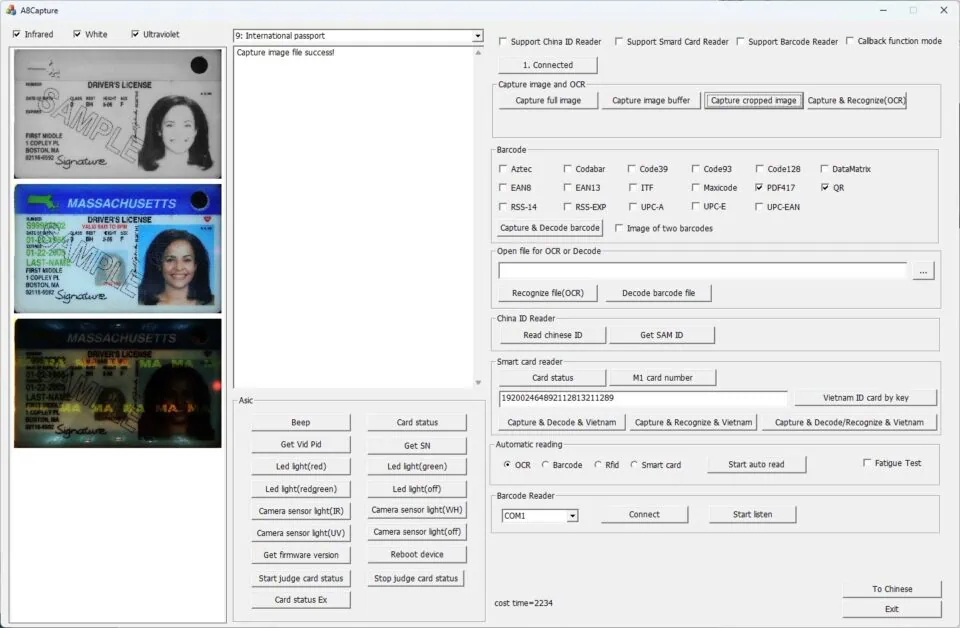

Software SDK

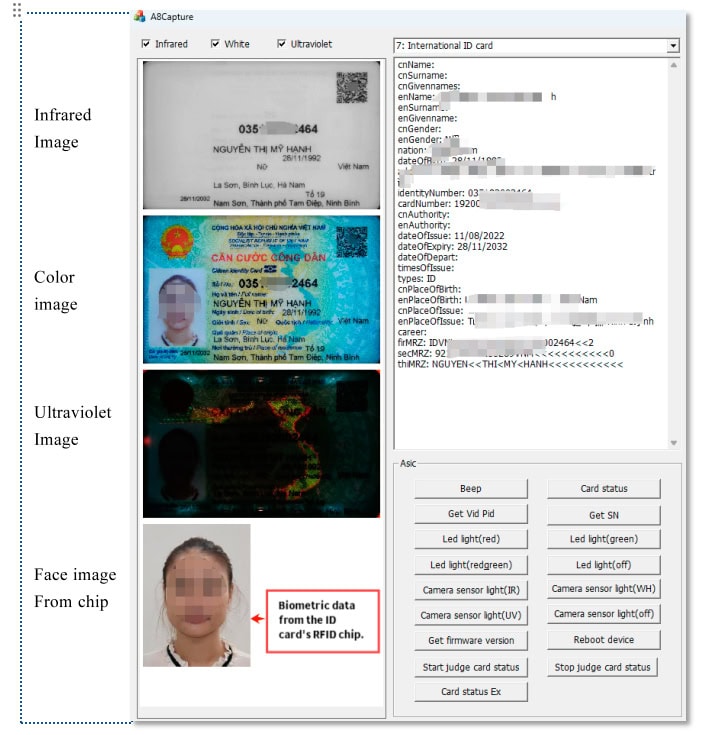

The IDE200 Captures ID1 documents in single-action: Ultraviolet, infrared, and full color; and simultaneously decode the MRZ data or bar codes.
