2d barcode readers: OEM Barcode Reader: RT231

Barcode readers: 2D OEM Barcode Reader: RT231

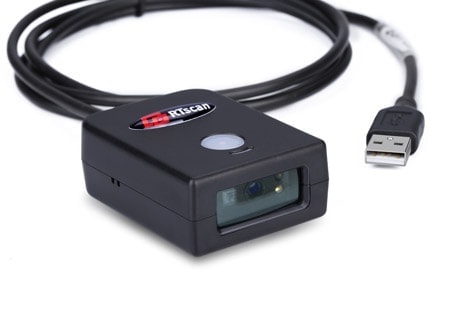

The RT231 is a fixed mount type 2d oem barcode reader, featured with the capacity to scan and decode very tiny Data matrix code. It builded with screw holes, can be fixed in wall, or embedded inside all kinds of self-service terminals. Its interface can be USB HID (Keyboard simulation) , USB virtual COM or DB9 RS232.

Fixed mount OEM 2d barcode reader for ultra small and high-density bar codes.
Outstanding for reading small Data matrix code from chips or small labels, or the inverse code printed on machine surface.

Watch the video to see its performance to read these tiny bar codes

The RT231 is specially designed for reading those

tiny 2d barcodes (e.g.: Data matrix code).

With 752*480 imager sensor and special optimization for ultra small 2d bar codes.
With special technology equipped in the reader, which makes it possible to read those very tiny Data matrix codes that can’t be read by most of other scanners.
It’s a fixed focus OEM reader, the best scanning distance is around 6cm.

Dimensions (604622.5MM):

Specifications

Performance	Image Sensor		752×480 CMOS
	Light Source		Illumination: 625±10nm red LEDAiming: 650nm laser diode
	Symbologies	2D	Data Matrix (ECC200, ECC000, 050, 080, 100, 140),QR Code, PDF417
		1D	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey,MSI-Plessey, etc.
	Resolution		≥3mil (differ from different type of code)
	Symbol Contrast		≥25% reflectance difference
Environmental	Operating Temperature		-20℃~+55℃ (-4°F~131°F）
	Storage Temperature		-40℃~+70℃ (-40°F~158°F)
	Humidity		5%~95% (non-condensing)
	Ambient Light		0~100000lux (natural light)

Choose the most suitable 2d OEM barcode reader module for your project

Models	iN1	RT218-ER	RT218-SD	RT218-SR	RT214	RT214B	RT214C	RT830i	RT830i-B	RT203	RT206
Read 2D and QR Codes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Read From Paper and Phone Screen	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Read Maxicode & Aztec	Yes	Yes	Yes	Yes	No	No	No	Yes	No	Yes	No
Depth of Field	Medium	Far	Near	Medium	Medium	Medium	Medium	Near	Near	Medium	Medium
Field of View	Normal	Normal	Normal	Normal	Normal	Normal	Normal	larger	Larger	Normal	Normal
Aimer	Laser	Laser	Laser	Laser	LED	LED	LED	No need	No need	LED	LED
Ultra-small & Compact design	Big	Yes	Yes	Yes	Yes	Normal	Big	Big	Big	Big	Normal
Compatible with Arduino via UART/ TTL-232 Board	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compatible with Arduino via USB EVK Board	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Compatible with Raspberry Pi Via USB EVK Board	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
