High Resolution And High Performance

2D QR Barcode and PDF417 Reader: RT300




This is a high performance and powerful 2D barcode QR and PDF417 reader, accurate, sensitive, high speed and very wide readable range ,and whatever for tiny or big size code;  If you need a high level performance 2d barcode reader for banks, for hospital or others public place where there is a line up, this would be your ideal choice. And especially, for the big size and high density PDF417 bar code in those ID cards or Driver's license, others common barcode reader can not decode it, then you can use this RT300, what's more, it's cost-effective!

Features

This is a 2d barcode reader PDF417 reader which we proud of

  • Readable PDF417 or QR bar code from ID documents or driver’s license easily and quickly.
  • Omnidirectional scanning, able to read all of the standard one dimensional bar codes and two dimensional bar codes such as QR code, PDF417 code, micro PDF417, and Data Matrix code
  • Capable for reading big size bar code from long distance away
  • Fast, even faster than some of Honeywell barcode readers.
  • Accurate aiming and decoding
  • Support Windows , Andriod(power output need to be >400mA)
  • Interface: USB-HID, USB-COM emulation, RS232, RJ11, Mini USB
Contact Us





Slide
PlayPlay

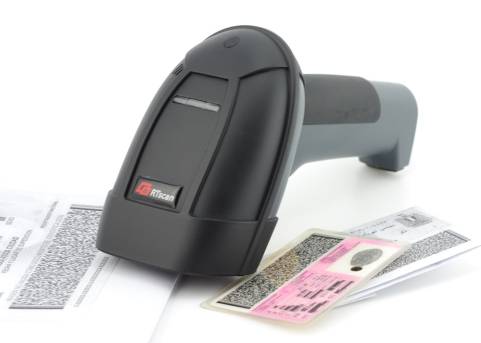

RT300-high-resolution-area-imaging-barcode-scanner
DF417-reader-rt300

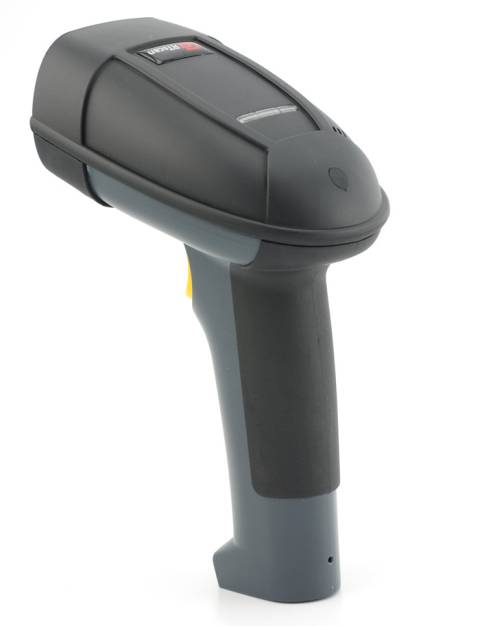

reader-DF417-rt300

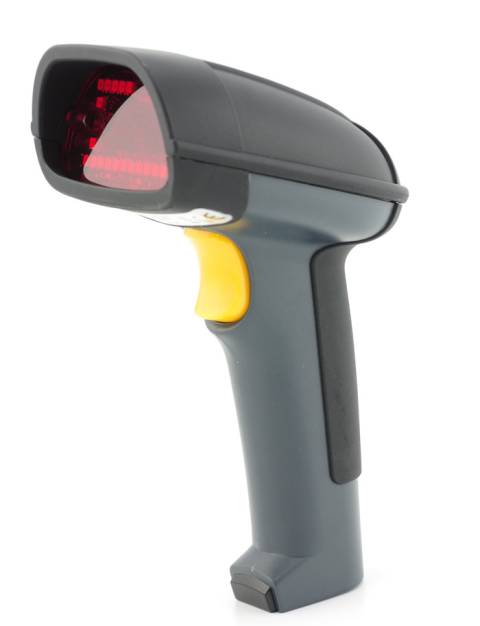

DF417-readers-RT300
Slide
RT300-high-resolution-area-imaging-barcode-scanner
DF417-reader-rt300
reader-DF417-rt300
DF417-readers-RT300
previous arrow
next arrow

High Resolution 2d PDF417 barcode reader

Need a embedded version kiosk OEM PDF417 reader? click here.
Products List

•1D Code Bar Scanners

•2d Barcode Readers

•Mobile Data Terminals

•OEM Barcode Scanners

•Wireless Barcode Scanners

How To Buy

Learn about how to buy,

terms of payment,

delivery and warranty?

learn more...

Or Email: info@rtscan.net

Send inquiry: Click here

Why RTscan

  • Professional & Focus
  • Good price
  • Quick support
  • Flexible customization

Learn More>>

Question?

You can get in touch us by:
  • Email:info@rtscan.net
  • Come to Support Page
  • Live Chat in the bottom of each page
Application

PDF417 Reader For:
  • Pakistan ID card
  • Colombia ID card
  • Paraguay ID card
  • nicaragua national identification card
  • Chile national identification card
  • El Salvador ID card
  • South Africa driver license
  • Egypt netional ID card
  • Vietnam ID card
  • Description
  • Tech Specs
  • Catalog Download
  • Video Demo
  • High Resolution And High Performance 2D QR Barcode and PDF417 Reader: RT300

    The RT300 is a barcode reader which is specially designed for reading those big size and high density PDF417 code in identification documents or driver’s license.

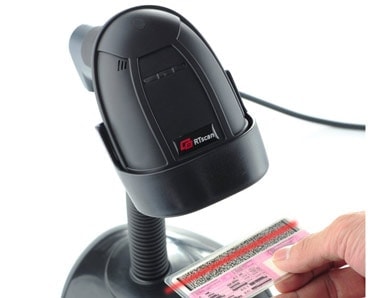

     lector-codigo-PDF417-RT300-RTSCAN11

    With 1.3mega pixel high resolution image sensor, which is optimized for big size and high density barcode scanning, the RT300 offers outstanding performance for reading the PDF417 in ID documents worldwide, easy and fast reading.

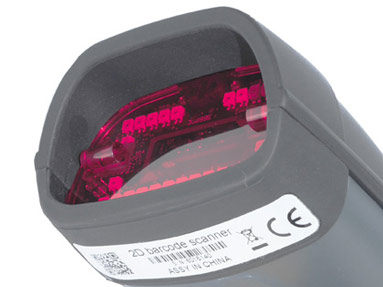

    DF417-ID-SCANNER-RTSCAN31

    Besides of the PDF417 code in ID documents, the RT300 also supports decoding most of 1D and 2D bar codes, such as QR code, Data Matrix, and it is also outstanding for reading extremely big size barcode from long distance.

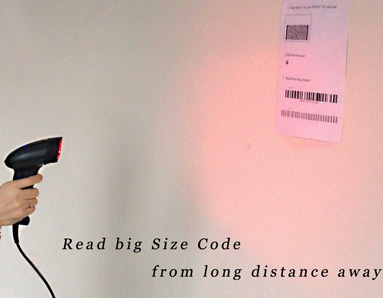

    RT300-ID-Barcode-Scanner4

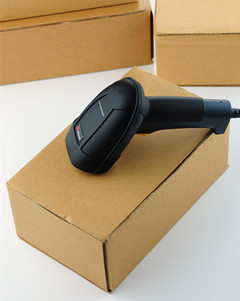

    Package:

    Package of RT300GW:0.7kg/unit

    20units/Carton

    14.8kg/Carton

    Carton size: 44*33*53CM

    RT300 Technical Specifications



    Mechanical



    Dimensions (LxWxH)

    180mm x 80mm x 90mm

    Weight

    200 g

    Electrical



    Input Voltage

    5 VDC

    Operating Power

    2 W (400mA @ 5 VDC)

    Standby Power

    0.8 W (160mA @ 5 VDC)

    Interfaces

    USB, Keyboard Wedge, RS232

    LED class

    Classl:IEC60825-1  EN60825-1

    Electromagnetic

    compatibility

    FCC Part15, IEC60825-1,

    EN55022 Class B

    Environmental



    Operating

    Temperature

    0°C to 40°C

    Storage

    Temperature

    -40°C to 60°C

    Humidity

    0% to 95% relative humidity,

    non-condensing

    Drop

    Designed to withstand 1.5 m drops

    to concrete.

    Environmental

    Sealing

    IP52

    Light Levels

    0 to 100,000 lux

    Scan Performance



    Scan Pattern

    Area Image (838 x 640 pixel array)

    Optical Resolution

    1.30MEGA pixels

    Motion Tolerance

    Up to 47 cm/s for 13 mil UPC at

    distance of 10cm

    Scan Angle

    Horizontal 50°; Vertical: 20°

    Symbol Contrast

    20% minimum reflectance difference

    Pitch, Skew

    75°, 75°

    Decode Capability

    2D: PDF417,Micro PDF417, Data Matrix,QR code, Aztec  1D: GS1 DataBar,UPC\EAN (UPC-A,UPC-E,EAN-13,EAN-8), Code 128, Code 39,Code 93

    Warranty

    1 year factory warranty



    Typical Performance*

    5mil(1D)

    35mm-  145mm

    7mil(1D)

    25mm-  230mm

    13mil(1D)

    20mm-   330mm

    10mil(2D)

    20mm-   330mm

    15mil(2D)

    20mm-   400mm

    *Performance may be impacted by bar code quality and environmental conditions

     lable

    PDF417-2D-Barcode-Reader-RT300.pdf

    3296 KB





    High Resolution And High Performance 2D QR Barcode and PDF417 Reader: RT300

    RT300 read PDF417 code in identification documents(ID card, driver's license, passport):
