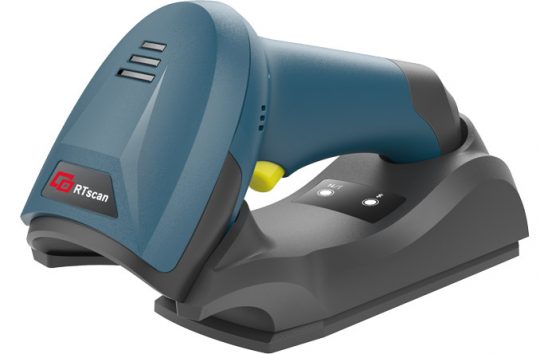

2D Barcode Scanner >> Wireless Barcode Scanner : RT330

The RT330 is a 2d wireless barcode scanner, it communicates by 433Mhz ISM radio frequency and with maximum 500 meters outdoor communication distance (without any obstacle). Readable most 1D barcode and 2D barcode such as QR code, PDF417 code, Data Matrix, Aztec Code... either from phone screen or from paper.

Features

  • 2d wireless barcode scanner, communicates by 433Mhz ISM radio frequency
  • Long transmit distance, maximum 500 meters outdoor
  • Readable most 1D barcode and 2D barcode such as QR code, PDF417 code, Data Matrix, Aztec Code
  • Readable either from phone screen or from paper
  • With stand / cradle for charging and data receiving







  • Description
  • Tech Specs
  • 2D Barcode Scanner > Wireless Barcode Scanner

    The RT330 is a 2d wireless barcode scanner, it communicates by 433Mhz ISM radio frequency with about 500 meters outdoor communication distance (without any obstacle).

    Readable most 1D barcode and 2D barcode such as QR code, PDF417 code, Data Matrix, Aztec Code...

    The barcode reader goes with a base/stand as a charger and also a receiver, the decoded data firstly transferred to the base and the base connects with computer via USB or RS232 interface and uploads the decoded data to computer.

    Video demo of the 2D Barcode Scanner > Wireless Barcode Scanner

    Video demo for wireless bar code scanning :

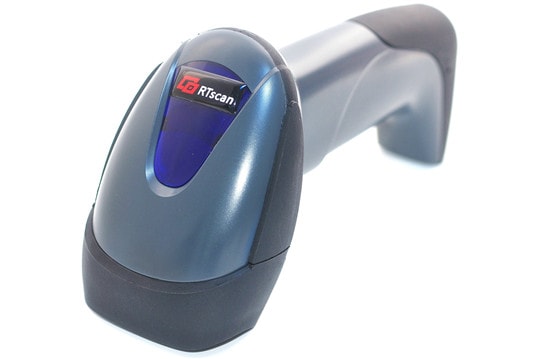

    bluetooth-lector-de-codigo-rt102BT

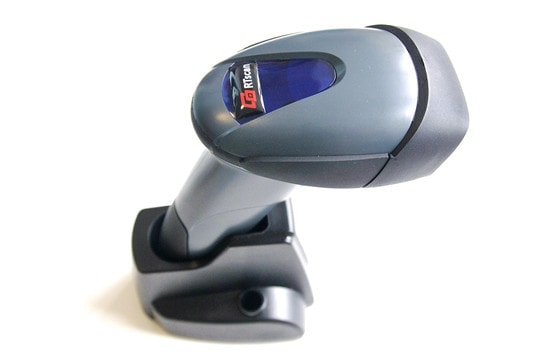

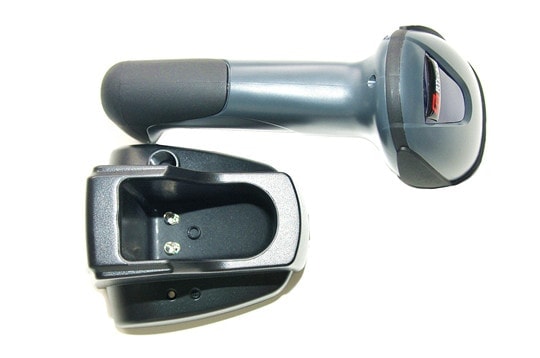

    Cordless-1d-bluetooth-reader-RT102BTWireless-bluetooth-reader-RT102BT

    2D Barcode Scanner > Wireless Barcode Scanner

    Communication

    433MHz ISM band RF

    Receiver interface

    USB-HID, RS232

    Receiver dimension

    80mm×56mm×25mm

    Communication distance

    433Mhz: up to 300 meters outdoor, indoor 100 meters

    Motion tolerance:

    up to 25in. (63.5cm) per second

    Scanning speed

    100 times/s

    Scanning duration time

    15 hours continuously

    Barcode Type

    1D: UPC\EAN with supplementals\ Bookland EAN\ ISSN\ UCC Coupon Extended Code\ Code 128\ GS1-128\ ISBT 128\ Code 39\ Code 39 Full ASCII\ Trioptic Code 39\ Code 32\ Code 93\ Code 11\ Matrix 2 of 5\ interleaved 2 of 5 Discrete 2 of 5\ Codabar\ MSI\ Chinese 2 of 5\ GSI DataBar Variants\ Korean 3 of 5\ ISBT Concat

    2D: PDF417, Micro PDF417, QR Code, Micro QR, DataMatrix, Aztec Code, Maxi code

    Scanning Mode

    Sensor Resolution

    Area-imaging scanning

    640*480 pixels

    Resolution (pcs0.9)

    Minimum 0.10mm(4mil)

    Depth of Field

    15-600mm (pcs0.9)

    Roll, Pitch, Skew

    360, ±65°, ±60°

    Print Contrast

    ≥ 25%

    Operating temperature

    0 °C—50°C

    Storage temperature

    -40 °C—60°C

    Operating humidity

    5%-95%

    Storage humidity

    5%-85%

    Safety Performance

    CE Class 1:EN60825-1

    Exterior dimension

    L x W x H:160mm x 65mm x 85mm

    Weight

    110g

    Reading distance range

    5mil

    35-110mm

    10mil

    15-280mm

    13mil

    20-320mm

    16mil

    35-360mm

    35mil

    150-625mm
