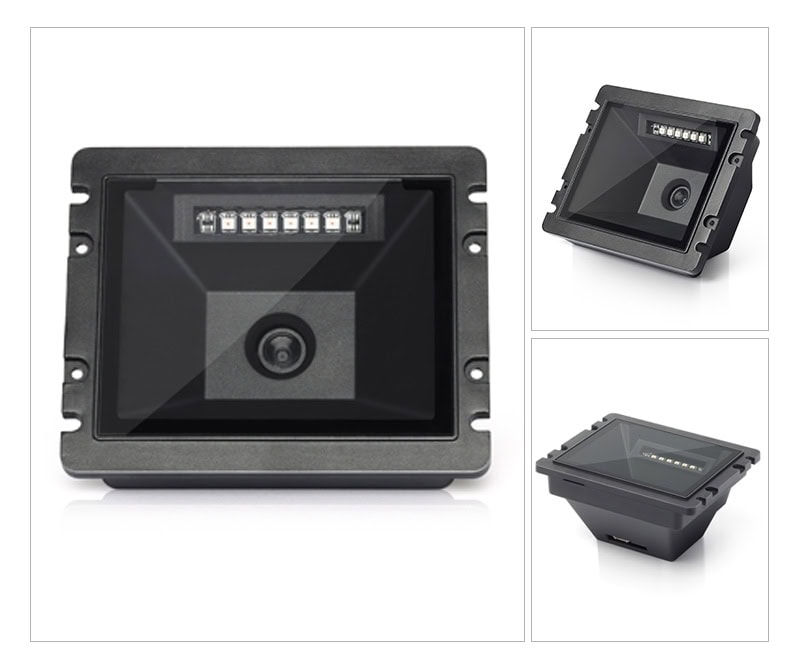

High-speed 2d Scanner For Retails Terminals: RT860D
RT860D is designed for all kinds of applications that require high-speed code reading, such as Self-checkout/ POS Kiosks in retail applications. It can also be used for transportation ticketing applications: metro ticket validator, bus ticket validator, etc. It’s Outstanding for its high-speed reading performance, which provides a good user experience.
Features
- Excellent reading speed
- Fixed mount design for embedded use
- Large field of view – user friendly
- Can read bar codes from screen and paper
- Detect and read bar code automatically
- Support most 1D and 2D bar codes
Connection
Certificate
CE FCC ROHS
Video Introduction
High-Speed 2D Scanner: RT860D
Built-in powerful sensor and imaging technology, the RT860D can detect, capture, and read bar code very quickly.
Its large scanning window also makes it easy to capture and decode the code from a package.
It can decode almost all types of 1D/2D bar codes, including Aztec, Maxi Code, QR, Data Matrix, PDF417, and EAN codes. It has also been optimized for reading bar codes from mobile phones.
Thanks to its special design, you can embed the scanner under glass, this can ensure dust-proof and rain-proof for both outdoor and indoor use.
Support sense mode which detects and reads bar code automatically.
Application in Self-checkout & POS Terminals
Its high speed, large scanning window, and accurate reading performance make it very suitable for retail terminals like Self-checkout & POS terminals
The passenger shows their payment QR or 1D code on their cellphone screen or card, and the bar code reader detects and reads the QR code or 1D code automatically.
Setting Codes Programming
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.
We provide rich programming codes for you to do many kinds of settings / user-define.
Please ask our sales people for detailed documents.
Integration
We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
Specification
Performance | ||
Image Sensor | 1280 pixels (H)x 1024 pixels (V) | |
Illumination | Illumination: RED LED | |
Aiming | ||
Symbologies | 2D | PDF417, MicroPDF417, Data Matrix, Maxi code, QR Code, Micro QR, Aztec, etc. |
1D | UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post., Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, GS1 Composite Codes, etc | |
Minimum Resolution | ≥ 4 mil | |
Typical Depth of Field | EAN13 | 10-100mm (13mil) |
PDF417 | 5-50mm (7mil) | |
QR Code | 10-50mm (13mil) | |
Data Matrix | 5-40mm(13mil) | |
Performance may be impacted by bar code quality and environmental conditions | ||
Scan Mode | Sense mode: detects and reads automatically | |
Scan Angle | Roll: 360°, Pitch: ±65°, Skew:±65° | |
FOV | 68°(H) 58°(V) | |
Motion Tolerances | Up to 180cm/s | |
Print Contrast: | 20% minimum reflective difference | |
Mechanical/Electric | ||
Interface | USB, RS232, TTL232 | |
Dimensions | 114mm x 93.5mm x 59.1mm | |
Notification | Beep, LED blinking | |
Voltage | 5±5% VDC | |
Current | Operating: 470mA. Standby: 220mA. | |
Window size 95mm*75mm | ||
Environmental | ||
Operating Temperature | -20℃ to 60℃ | |
Storage Temperature | -30℃ to 70℃ | |
Humidity | 0% to 95% relative humidity,non-condensing | |
Ambient Light | 0-100,000 Lux. | |
Immunity |
